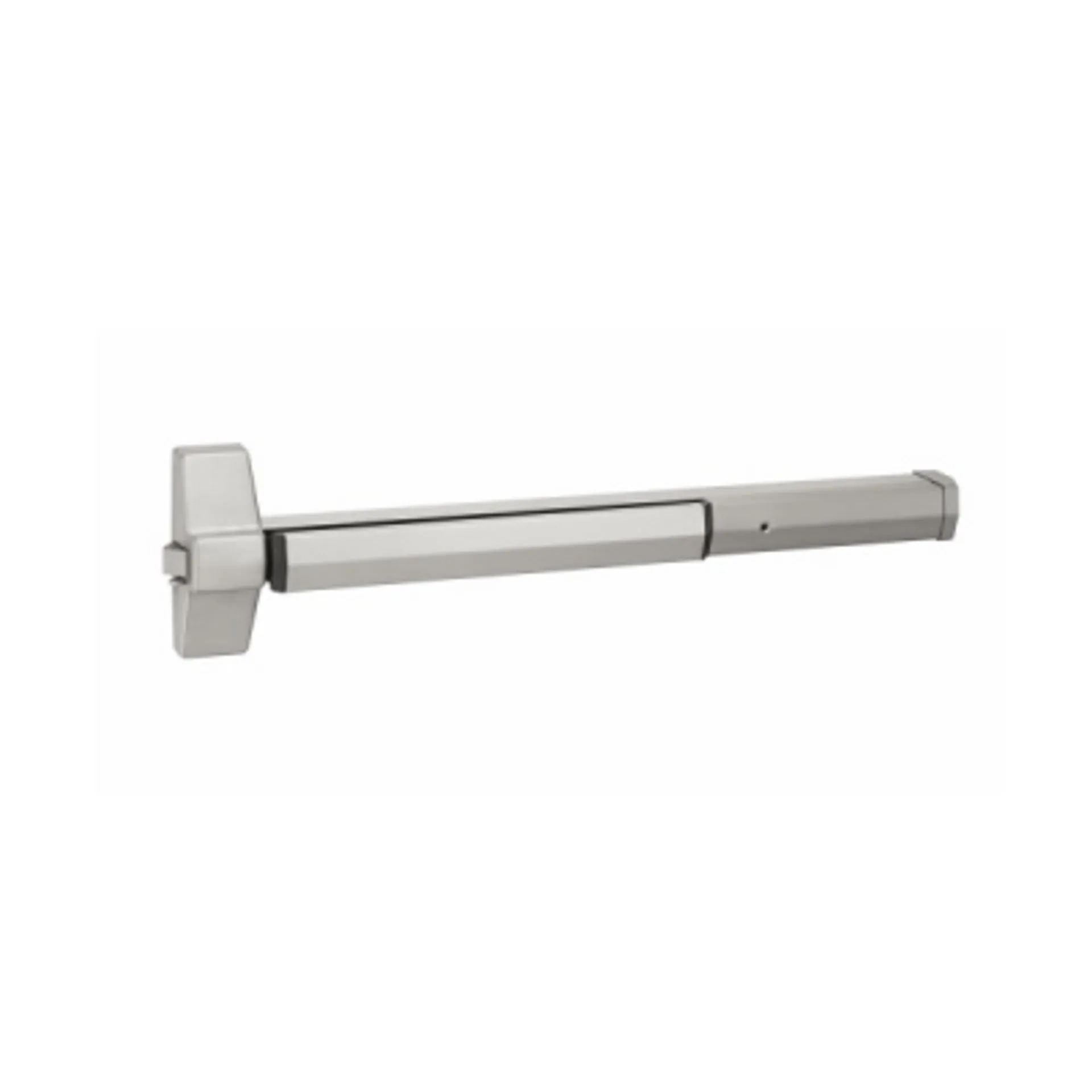

Model: YAL 7100
ale 7000 series exit devices deliver an unparalleled combination of durability, innovation and aesthetics. With ANSI/BHMA Grade 1 certification and a full range of mechanical and electromechanical functions and accessories, the 7000 series can be easily integrated into existing security or fire alarm systems to ensure the safety of every opening. The simple, clean lines and variety of available finishes suit the modern decor of any commercial building. Sleek design with clean lines offers a modern look. Fire rated items are UL/cUL listed for use on fire doors having a rating up to and including 3-hours unless otherwise noted. Featuring unique free wheeling lever mechanism that allows the lever to rotate freely even when securely locked, increasing security and preventing vandalism.
Specifications
- ADA CompliantYes
- Additional InformationDesigned for application in high use areas
- ApplicationSingle or Pairs of Wide Style Doors
- BoltDeadlocking stainless steel pullman-type
- Bolt Throw Length3/4" (19mm)
- Country of OriginUSA
- Device TypeRim
- Dogging OptionsHex Key Dogging
- Door MaterialMetal, wood or composite
- Door Thickness1-3/4" (44 mm)
- Door Width30-36"
- Duty Weight/ClassHeavy Duty
- FastenersIncluded
- Fire RatedNon Rated
- FunctionRim Exit Device
- GradeGrade 1
- HandField Reversible
- Projection3-1/4" (83 mm) Active x 2-/1/2" ( mm) Dogged
- SeriesYale 7000 Series Exit Devices
- StandardsANSI/BHMA A156.3 Type 1
- Stiles4-1/2" (114 mm) Minimum Width
- Strike Number757F
- Trimnot included
- TypeWide Stile Pushpad
- Unit of MeasureEach
