Description

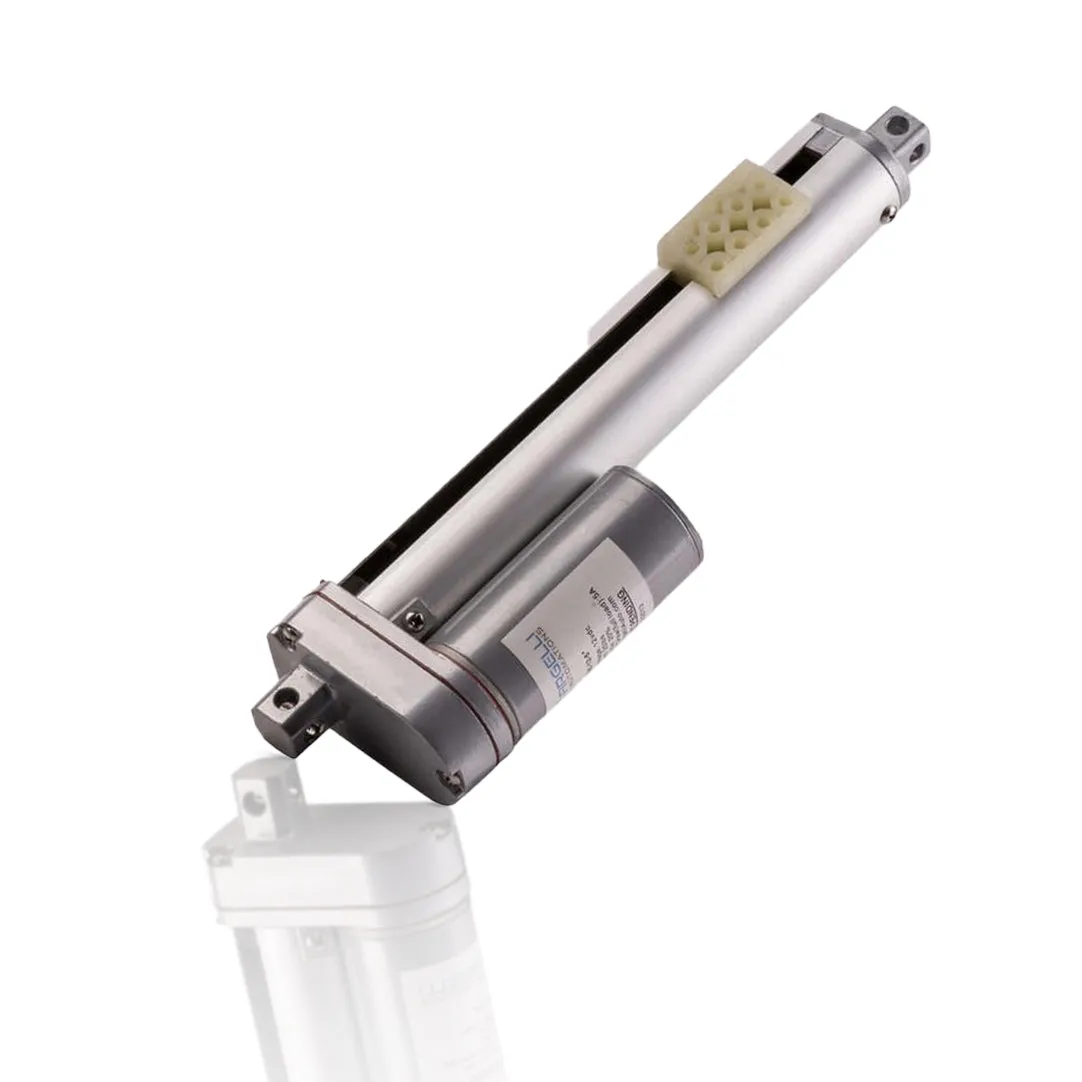

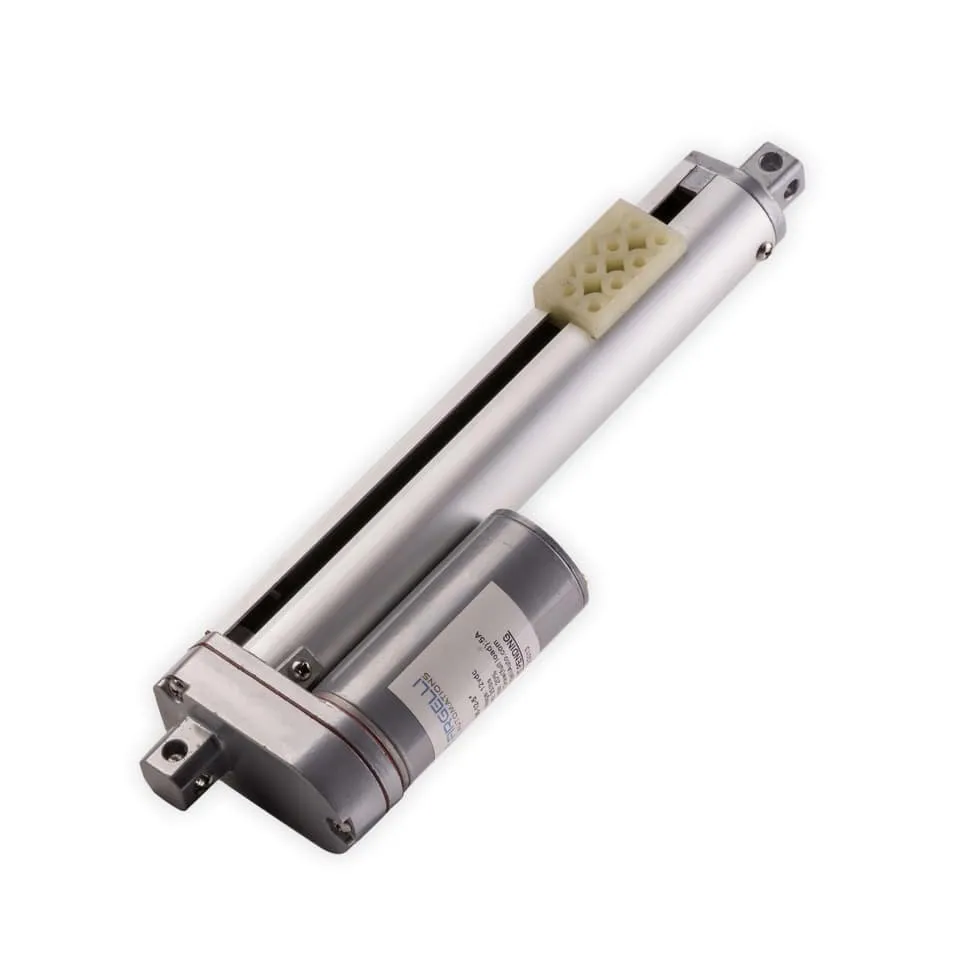

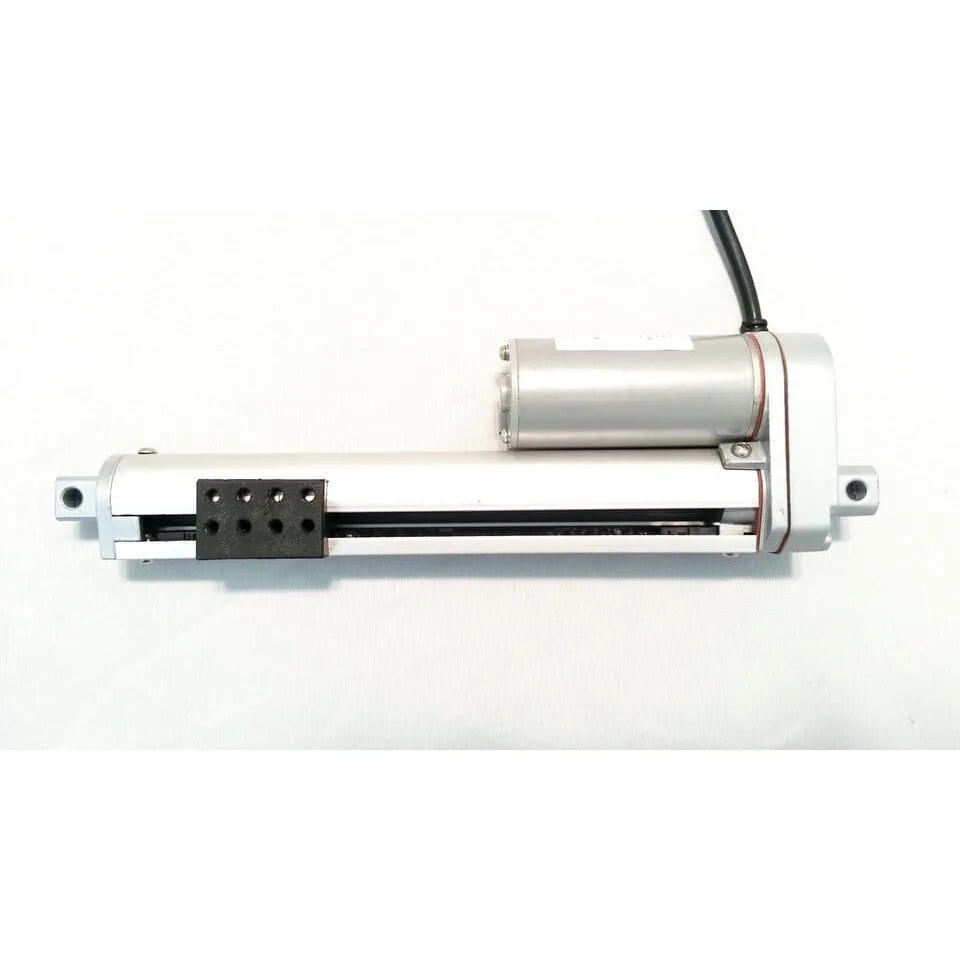

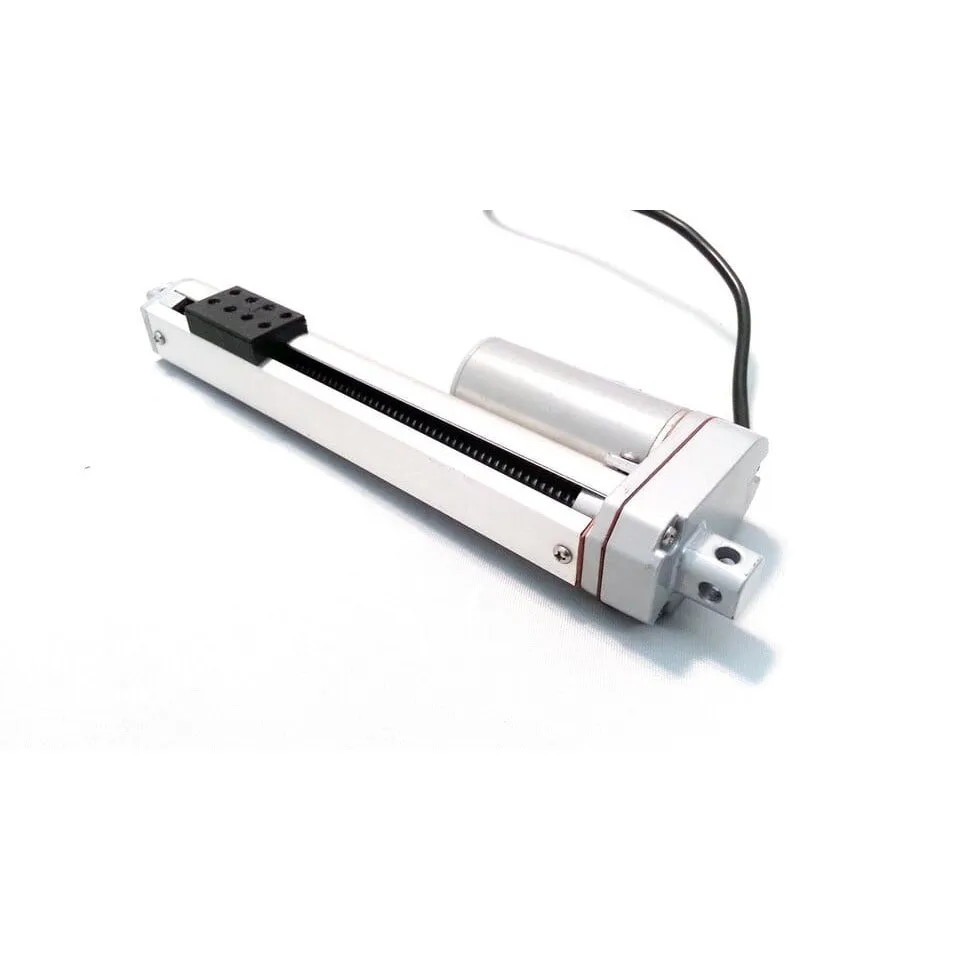

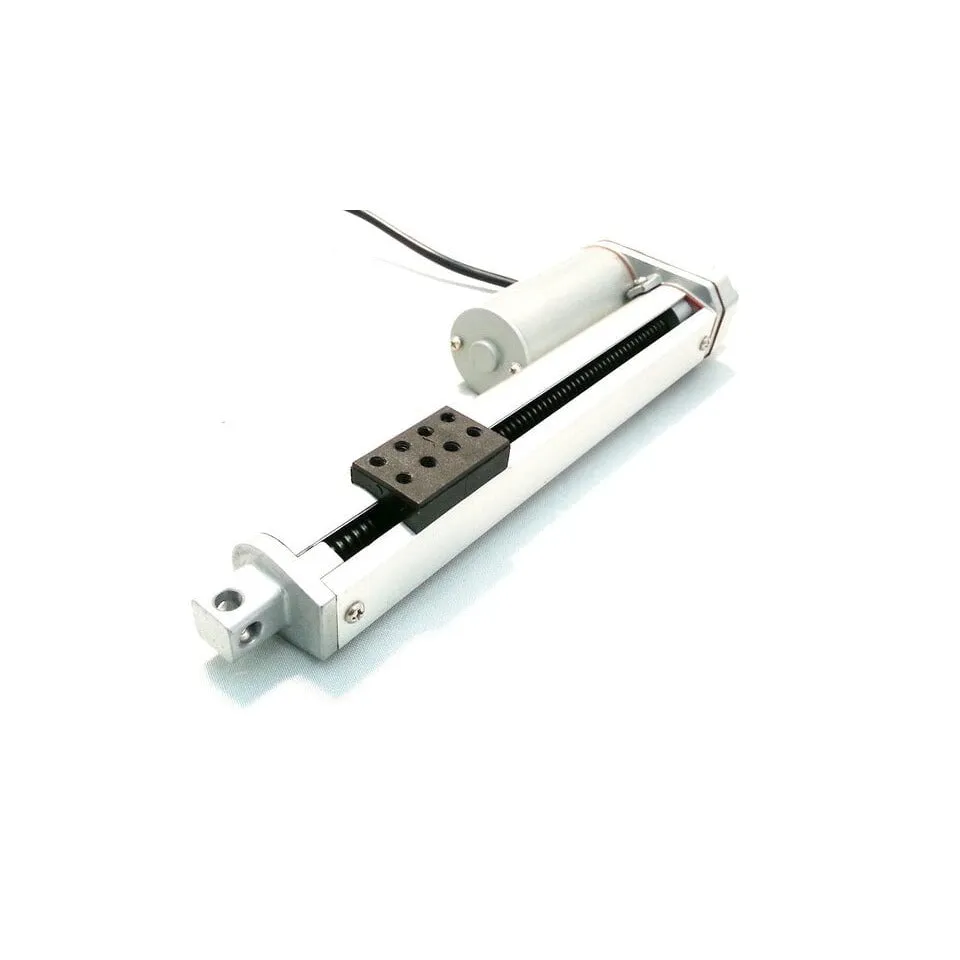

Mini Track linear actuators have been developed by us for applications where space is limited. These actuators have no extending rod, instead they have a slider-carriage that moves up and down the main body of the Actuator. This means they are more compact and offer more flexibility with your Automation projects.

CAD models of this actuator can be found under . For further information review the specifications and technical drawings down below or visit our  for instructions on how to use this actuator with switches, remotes, speed controllers, and Arduino.

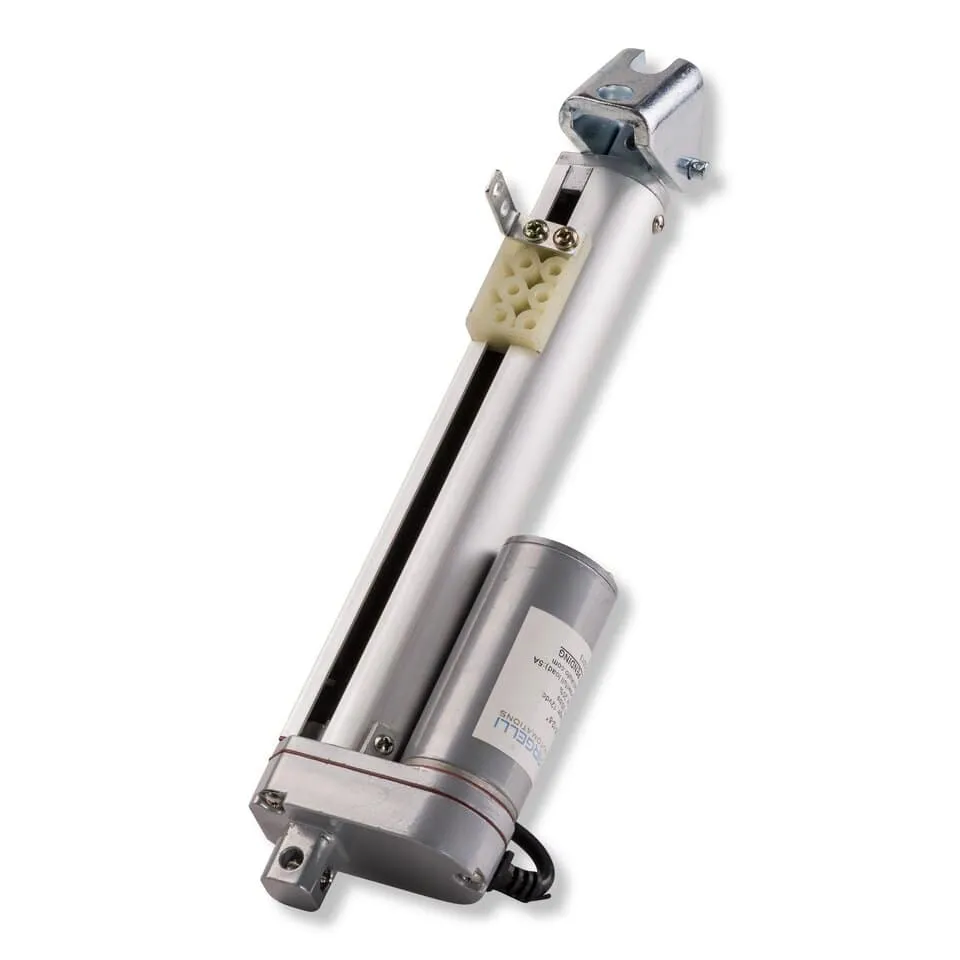

Due to the popularity of the Heavy-Duty Track Linear Actuator line, the Mini Track Actuator line was developed, tested, and put to production. Once the missing link in the Firgelli Automations product catalog, the Mini-Track Linear Actuators have taken the industry by storm, providing superior service in a variety of different markets; including home theater, automotive, aerospace, agriculture industry and more. The need for compact, low closed-length linear actuators had never before been analyzed by a manufacturer, and the potential applications began stacking up. The Mini Track Actuators offered by Firgelli Automations come in one variation with various stroke lengths and all the standard features our clients have come to expect in our products; Including, but not limited to: factory preset internal limit switches, first-rate materials providing smooth linear motion, an easy to connect two-wire design, as well as full certification with CE and RoHS. All units come with clevis-type mounting points on both ends, which are compatible with the as well as the sliding block which uses the  for added flexibility and installation ease.

*Patent pending design

Specifications

Technical Drawings

Product Video

Performance Graph

3D Model Downloads (.STEP)

35lb Force

Wiring Diagram

Click here to view our wiring diagram generator to help you set up your actuator system

Downloads
