Description

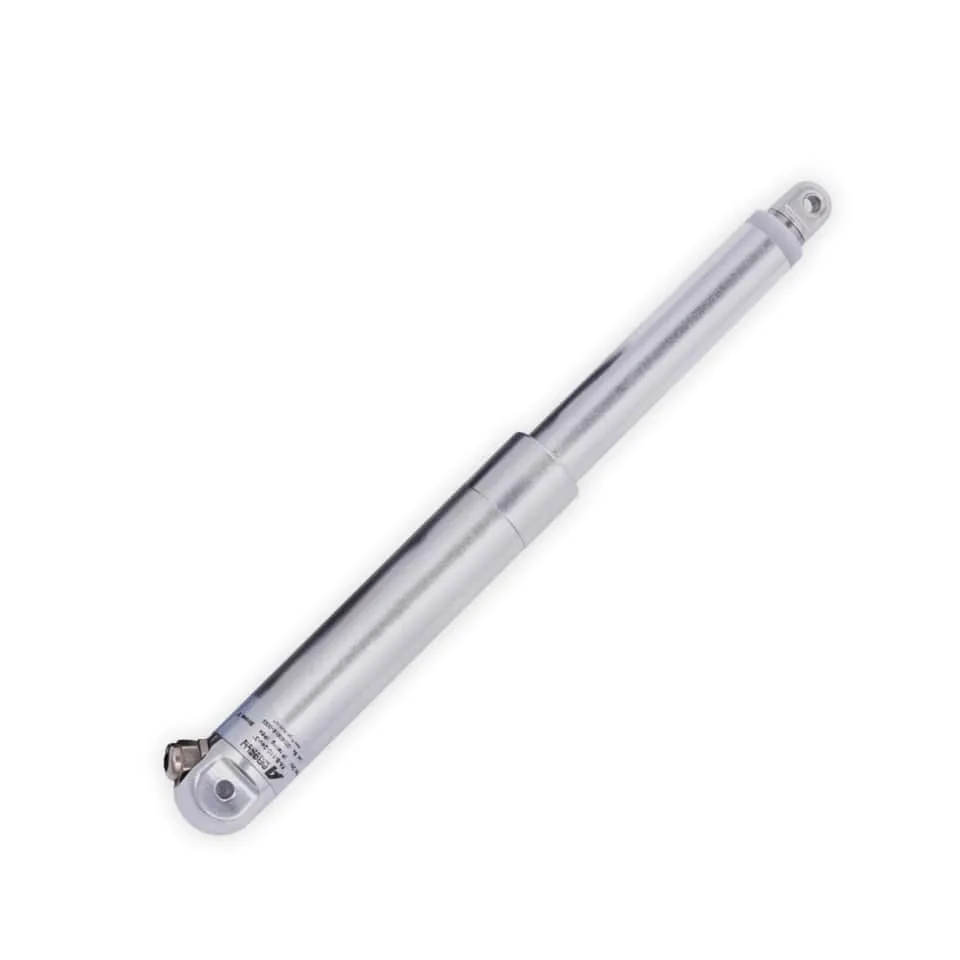

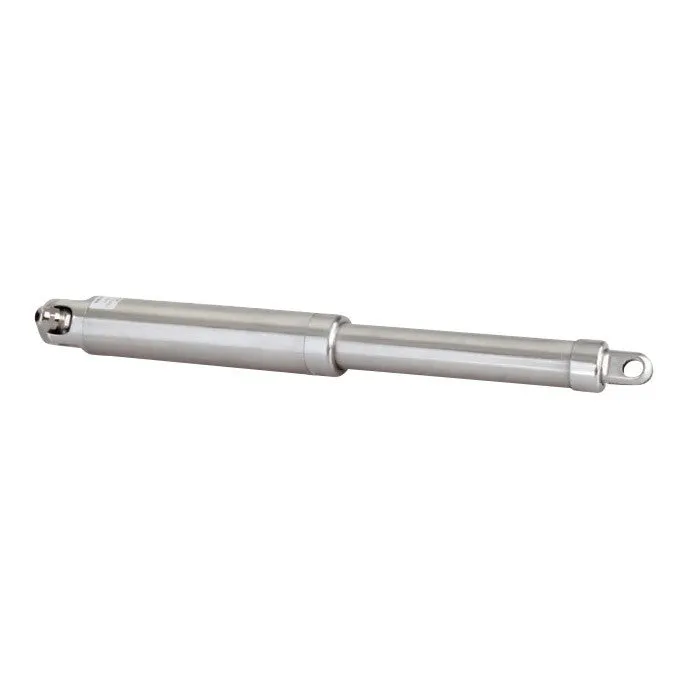

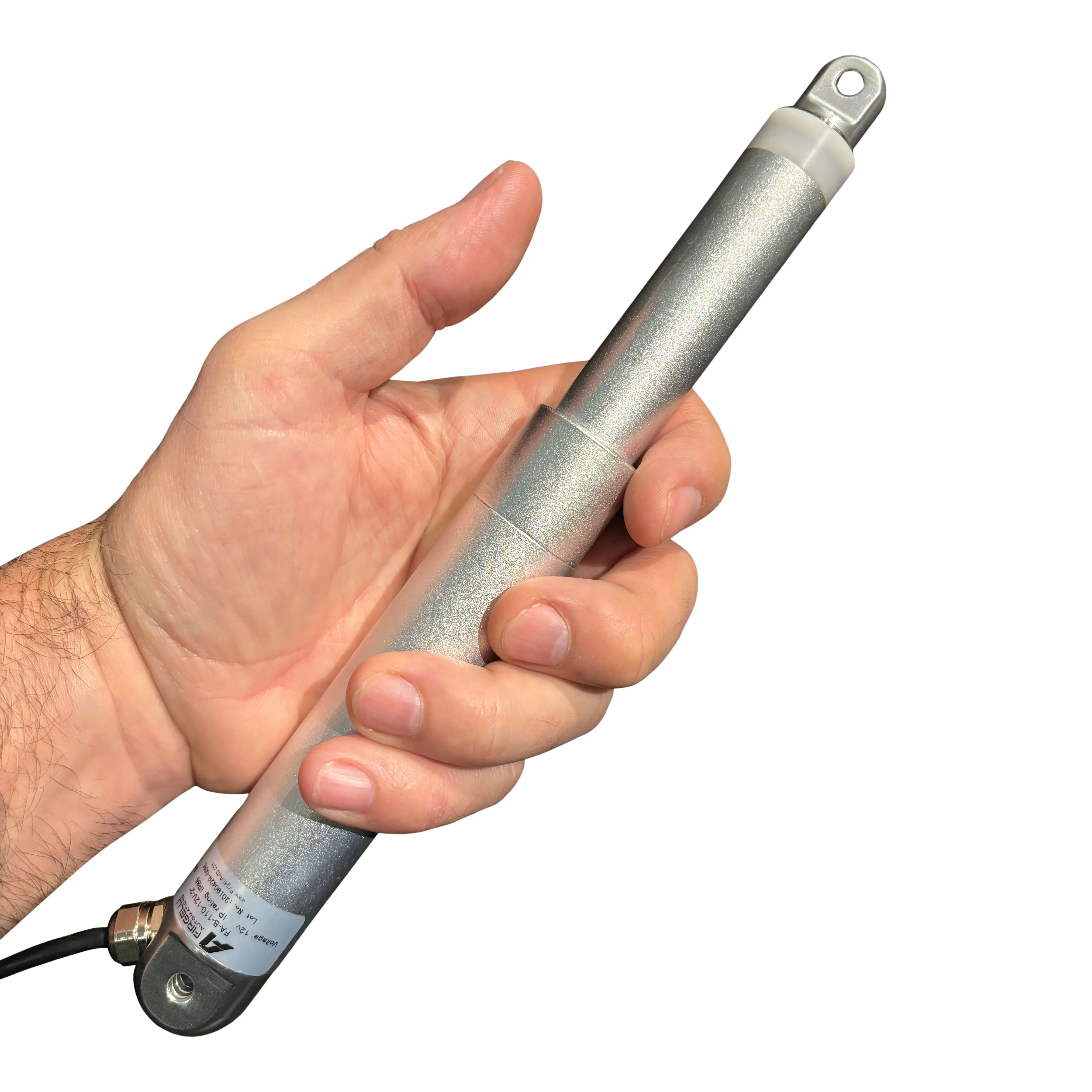

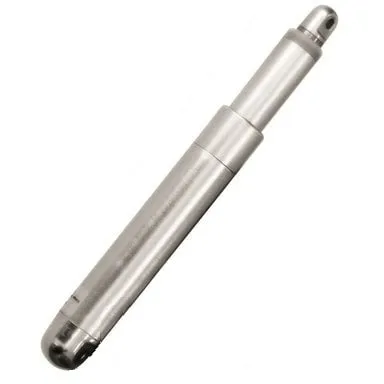

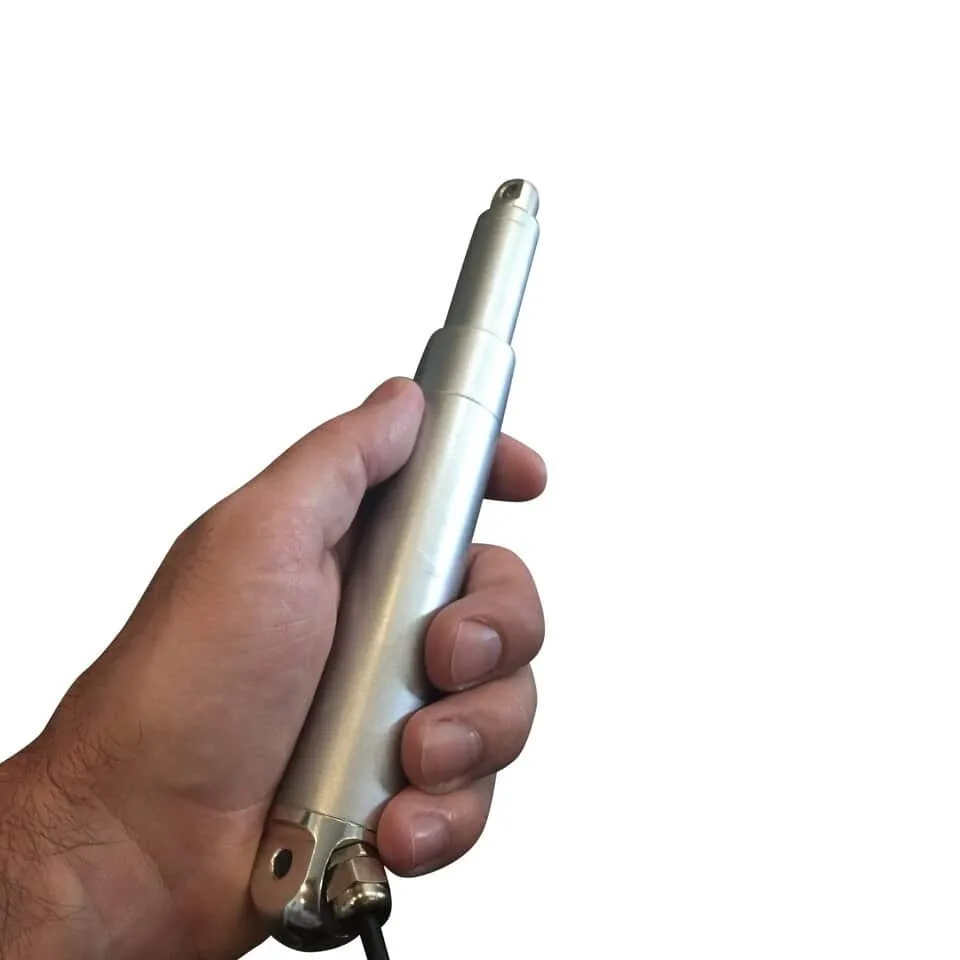

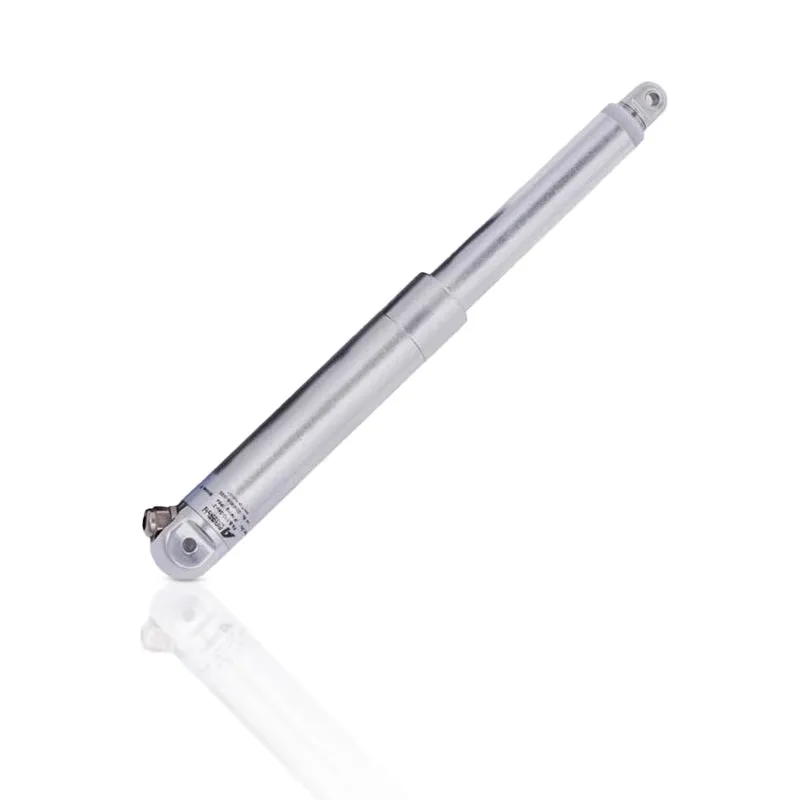

The new Bullet Series Mini Actuator is very compact and powerful for its size. Made from T6061 Aluminum, they are light weight and fitted with high quality Japanese motors to ensure a long life span and low operating noise, plus an IP66 rating. We offer them as standard in 12v or 24v, with two force options and stroke lengths from 1 to 8 inches. Pairs with , which are designed specifically for this actuator.

These Actuators come with an integrated force sensor (in the form of an over-current protection circuit), this means if they bump into something, or when they get to the end of their stroke, they automatically stop moving until you either change direction or remove the load. Please be aware that this model does not have internal limit switches. This is a great new safety mechanism and offers many applications from Skylight Window openers to Automotive motion control, perfect for applications where space is tight.

CAD models of this actuator can be found under . For further information review the specifications and technical drawings down below or visit our for instructions on how to use this actuator with switches, remotes, speed controllers, and Arduino.

Accessories sold separately include: - - -

Specifications

	FA-B-20-12V	FA-B-20-24V	FA-B-110-12V	FA-B-110-24V
Push/Pull Force	20 lb	20 lb	110 lb	110 lb
Self Locking Force	1.5 to 3 times Push/Pull Force	30-60 lb	165-330 lb	165-330 lb
Speed ("/s)	0.433	0.433	0.138	0.138
Gear Ratio	49	49	139	139
Voltage	12V	24V	12V	24V
Max Current	1.4A	0.7A	1.4A	0.7A
Duty Cycle	10%
Operating Temp. Range	41°F to 104°F (5°C to 40°C)
Over Current Circuit Protection	Built In
Circuit Breaking Current	1A	0.5A	1A	0.5A
Circuit Breaking Response Time	0.1 to 0.5 Seconds
Feedback	None
Synchronous Capability	None, 5-10% variation in speed
Storage Temp. Range	-40°F to 158°F (-40°C to 70°C)
IP Rating
No Load Noise Level	50-70 dB
Diameter	1.024”
Outer Housing Material	Aluminum T6061
Expansion Rod Material	Stainless Steel 304
Cable Length	4 feet
Wire Size	20AWG

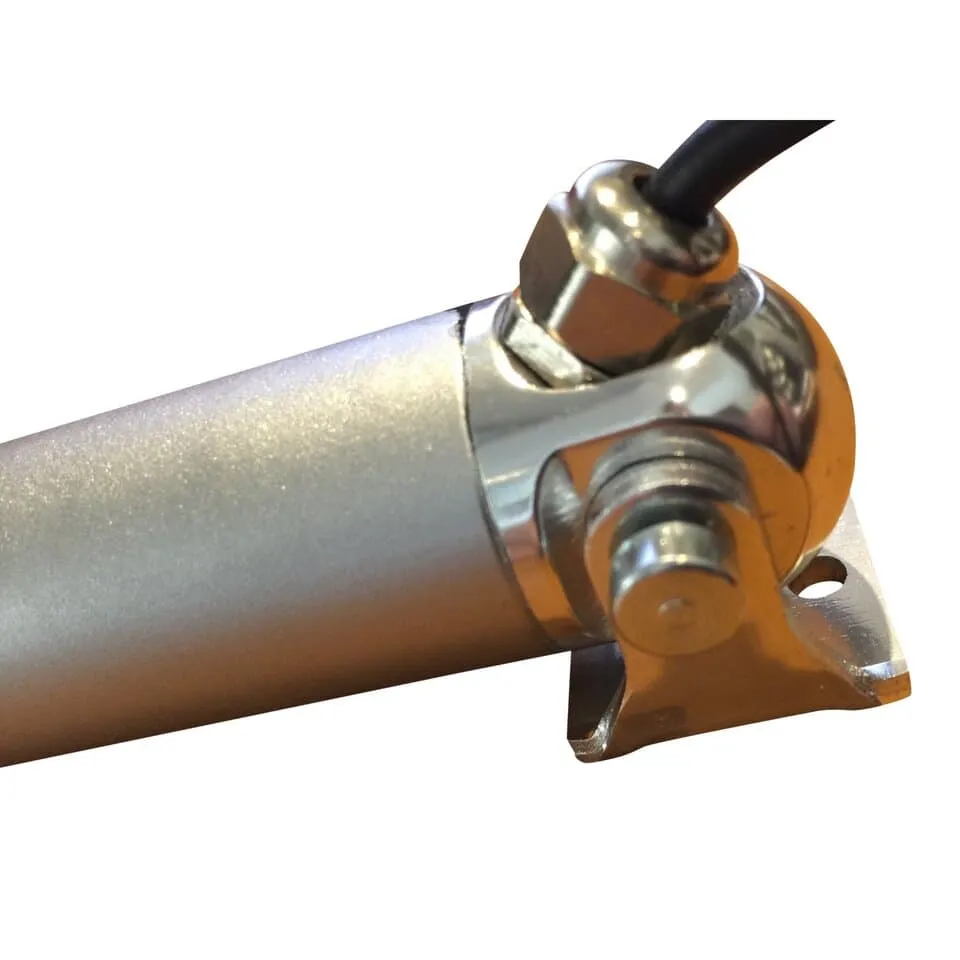

Brackets

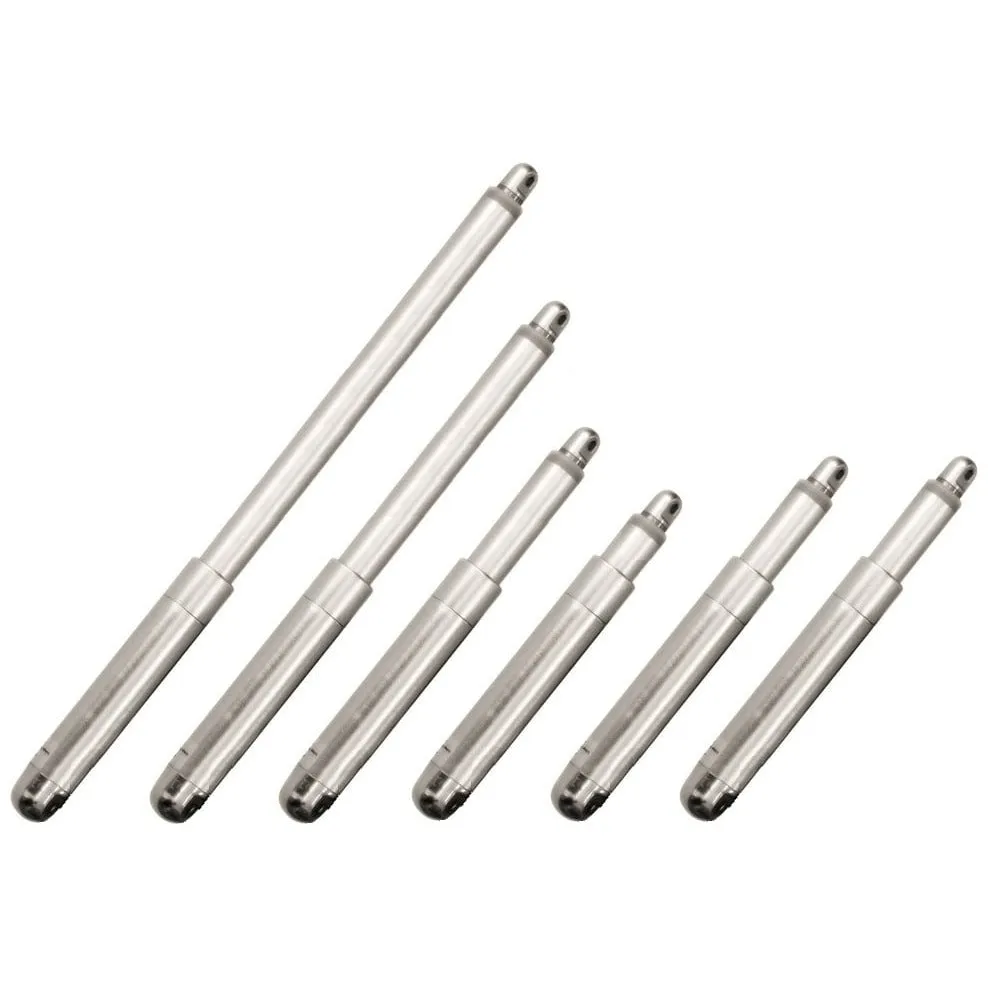

Stroke Length	Retracted Length	Extended Length	Weight	STEP File
1”	7.693”	8.693”	0.715 lb
2”	8.693”	10.693”	0.77 lb
3”	9.693”	12.693”	0.825 lb
4”	10.693”	14.693”	0.88 lb
5”	11.693”	16.693”	0.935 lb
6”	12.693”	18.693”	0.99 lb
7”	13.693”	20.693”	1.045
8”	14.693”	22.693”	1.10 lb
